Pennsylvania Switchgear Circuit Breaker Product Advantages
Pennsylvania Switchgear’s High-Voltage Dead Tank Circuit Breakers outperform the competition with innovative engineering—featuring a patented Integral Particle Trap for superior dielectric performance and an internal tank heater that ensures efficient, maintenance-friendly operation without gas removal. Designed, manufactured, and supported in the U.S.A., our breakers deliver unmatched reliability and customization, backed by the proven strength of Pennsylvania Transformer Technology and Quanta Services.
PA Switchgear offers two families of dead-tank circuit breakers. The PB145 is rated at 40kA interrupting current for applications rated 123kV through 170kV class. The PB72 is rated at 40kA interrupting current and 72kV class applications. Both the PB145 and PB72 utilize a spring mechanism and an SF6 self-blast interrupter. All of PA Switchgear’s circuit breaker families have been designed in house. No technology was purchased and no technology is licensed.
As the only American-owned designer of high voltage circuit breakers, our focus is on the American customer. Our breakers were developed specifically for our home market. All products are designed to handle the faster 60 Hz rise times and longer transmission lines of North America. PA Switchgear’s breakers are not grandfathered to older, less stringent requirements. Our breakers have been certified beyond current industry standard requirements. This provides customers with confidence that the breakers will perform well regardless of the application.
Pennsylvania Switchgear Breaker Products
PB145 Dead Tank Breakers
The PB145 Family of High-Voltage Dead-Tank Circuit Breakers from Pennsylvania Switchgear delivers exceptional performance and reliability for 123–170 kV applications, engineered with advanced spring and interrupter technology to ensure safe, efficient power system protection. Featuring innovative design elements like an integral particle trap and internal tank heater, these breakers provide easy maintenance, long-term durability, and superior dielectric performance even in the harshest conditions.
PB72 Dead Tank Breakers
The PB72 Family of High-Voltage Dead-Tank Circuit Breakers from Pennsylvania Switchgear offers proven reliability and high performance for 38.5–72.5 kV systems, utilizing advanced spring and interrupter technology to ensure safe, consistent operation. Designed for durability and easy maintenance, these breakers feature an integral particle trap, internal tank heater, and customizable options to deliver efficient, long-lasting protection in the toughest conditions.

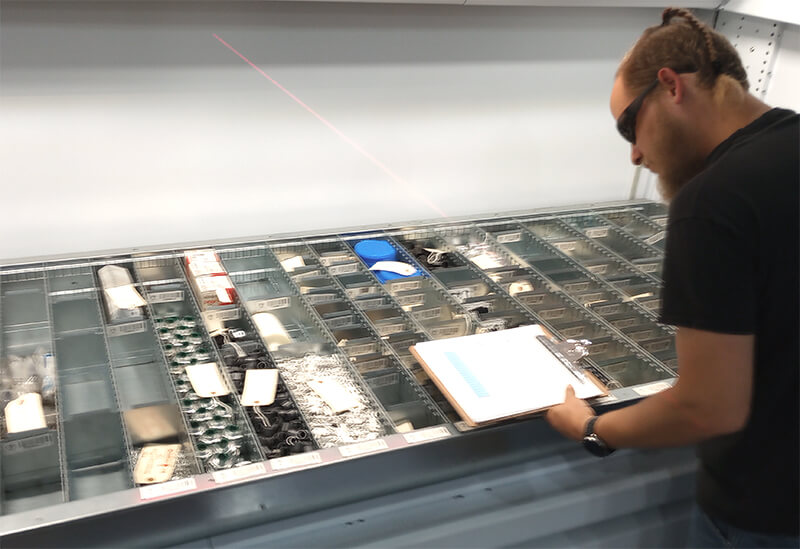

Manufacturing HV Breakers in Canonsburg, PA
